Intelligent Concrete Agitator control
intelli-mix is a registered trademark of imerge networks pty ltd - used with permission
safe
rugged
reliable
smarter
better
The Intelli-mix control system is designed and manufactured in Australia using
components from Autec - the leading manufacturer of safety remote control
systems in the world
Components
Features

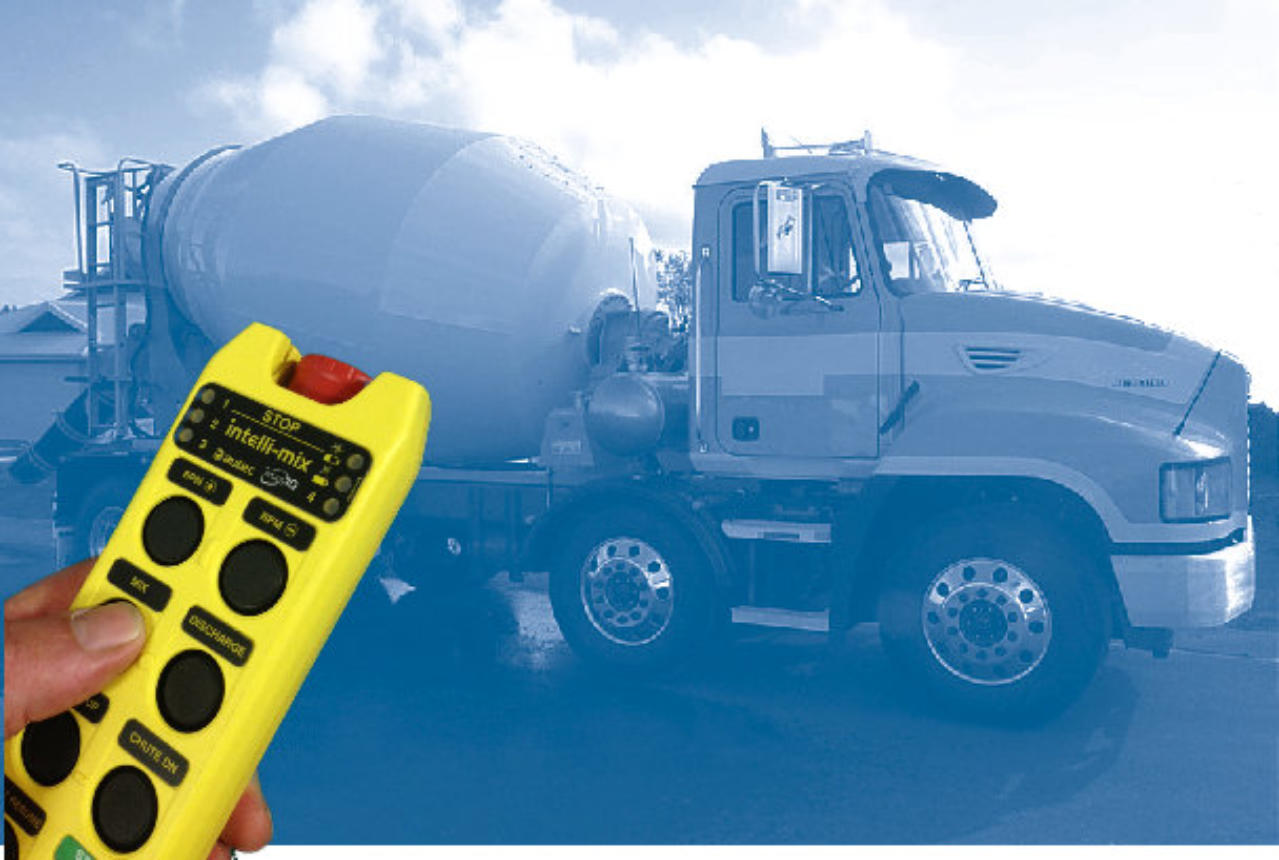

Autec A8 Safety-rated remote control
In-cab controller
IMCB Control Board
- Fail-safe dual-channel STOP button (GSS)
- Continuous transmission always monitored
- Dual-band 433-915 Listen-before talk radio
- Superior operating range
- Internal Li-ion battery is charged in the storage cradle
- Missing-transmitter detection helps prevent lost remotes
- Rugged fibreglass-reinforced nylon cases resist arduous
conditions
- Sealed to IP65
- 2-speed buttons for precision/rapid adjustment
- Dual-channel emergency-stop
- Embossed Tactile buttons
- Backlit screen and keypad with night-time dimming
- Compact dash mounting
- No clumsy & dangerous boxes or switches
- Used to configure and backup the Control Board settings
- Compact rugged enclosure (fibreglass nylon)
- Programmable for all truck and pump models
- Direct J1939 interface minimises installation time
- Multi-voltage 12/24V system allows the use of 12V coils on 24V
trucks, simplifying design, inventory, and spare parts.
-Dual-channel monitored Emergency-Stop with self-test
-Fail-safe STOP mushrooms on the remote control cab controller, and
chassis
- Dual control modes - cab or remote
- Safe passing of control from one to the other
- Manual or automatic changeover
- Responsive control of mix/discharge
- Individually adjustable minimum speed, maximum speed, ramp time, and
changeover time from mix-discharge
- Protected against accidental discharge by dual-channel outputs, and
stuck-button monitoring
- Direct engine monitor via J1939
- Adjustable minimum, maximum, and ramp speeds
- Supports all truck types
- Remote-throttleo output (or cruise-control if preferred)
- Maintains constant bowl speed when driving for product consistency and
to minimise bowl wear
- Easily adjusted transit speed can be memorised or temporarily increased
for steep hills, etc.
- Optional auto-transit triggered by road speed
- Single-key ramps to full engine and bowl speed (or other configured
speed)
- Supports remote throttle or cruise-control configurations
- Can swap immediately to transit mode by driving up to road speed
- Super-responsive control for accurate positioning
- 12V coils controllable from 24V
- Pause and resume operation for repeated operations
- Memorised pump and engine speed
- Perfect for block-fill and wheelbarrow work
- Clear removes any stored settings to prevent accidental resume
- Fully configurable wash-out mode
- Multiple forward-reverse cycles programmable for thorough clean
- Programmable final discharge can sound horn when complete
intelli-mix is a registered trademark of
imerge networks pty ltd
used with permission
Intelligent Concrete Agitator control
The Intelli-mix control system is designed and manufactured in Australia
using components from Autec - the leading manufacturer of safety remote
control systems in the world
Components
Features
Autec A8 Safety-rated remote control
In-cab controller
IMCB Control Board
- Fail-safe dual-channel STOP button (GSS)
- Continuous transmission always monitored
- Dual-band 433-915 Listen-before talk radio
- Superior operating range
- Internal Li-ion battery is charged in the storage
cradle
- Missing-transmitter detection helps prevent lost
remotes
- Rugged fibreglass-reinforced nylon cases resist
arduous conditions
- Sealed to IP65
- 2-speed buttons for precision/rapid adjustment
- Dual-channel emergency-stop
- Embossed Tactile buttons
- Backlit screen and keypad with night-time
dimming
- Compact dash mounting
- No clumsy & dangerous boxes or switches
- Used to configure and backup the Control
Board settings
- Compact rugged enclosure (fibreglass nylon)
- Programmable for all truck and pump models
- Direct J1939 interface minimises installation time
- Multi-voltage 12/24V system allows the use of 12V coils
on 24V trucks, simplifying design, inventory, and spare
parts.
-Dual-channel monitored Emergency-Stop
with self-test
-Fail-safe STOP mushrooms on the remote
control cab controller, and chassis
- Dual control modes - cab or remote
- Safe passing of control from one to the
other
- Manual or automatic changeover
- Responsive control of mix/discharge
- Individually adjustable minimum speed,
maximum speed, ramp time, and
changeover time from mix-discharge
- Protected against accidental discharge by
dual-channel outputs, and stuck-button
monitoring
- Direct engine monitor via J1939
- Adjustable minimum, maximum, and ramp
speeds
- Supports all truck types
- Remote-throttleo output (or cruise-control
if preferred)
- Maintains constant bowl speed when
driving for product consistency and to
minimise bowl wear
- Easily adjusted transit speed can be
memorised or temporarily increased for
steep hills, etc.
- Optional auto-transit triggered by road
speed
- Single-key ramps to full engine and bowl
speed (or other configured speed)
- Supports remote throttle or cruise-control
configurations
- Can swap immediately to transit mode by
driving up to road speed
- Super-responsive control for accurate
positioning
- 12V coils controllable from 24V
- Pause and resume operation for repeated
operations
- Memorised pump and engine speed
- Perfect for block-fill and wheelbarrow work
- Clear removes any stored settings to
prevent accidental resume
- Fully configurable wash-out mode
- Multiple forward-reverse cycles
programmable for thorough clean
- Programmable final discharge can sound
horn when complete
